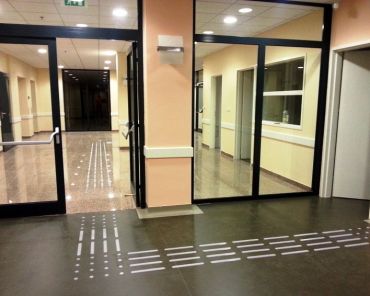

Tactile floor guiding system for the blind in the Zagreb Hospital TPU/P2 guiding strips and TPU/K2 warning studs in two colors were used for the design of the tactile floor guiding system. The elements used were self-adhesive, taped with 3M 93020LE.

Installation of aluminum guiding lines in the Austrian state of Tyrol Floor guiding systems for the blind were installed in several buildings in the Austrian state of Tyrol. The ALV aluminium guiding lines with a colored PVC anti-slip insert were used. In the photos you can see the guiding and warning indicators in a kindergarten, a museum and a local office. The installation was done using liquid glue. The warning field in front of the stairs at the top is composed of transversely oriented guiding lines.

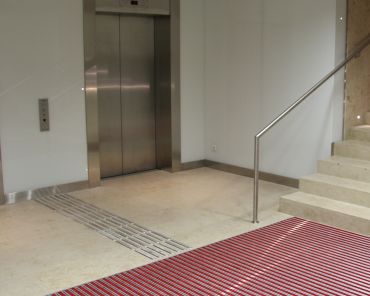

Installation of the stainless steel guiding system in the Korneuburg Justice Center, Austria The installation in the Justizzentrum Korneuburg took place in 2011. Tactile indicators made of stainless steel 316L were used in the installation of the tactile floor guiding system. AISI/PD1 stainless steel guiding strips with diamond surface were used. Guiding strip with pins were drilled in the floor. The guiding system is arranged according to ISOTI rules - International System Of Tactile Indicators. A different number and arrangement of the strips in the guiding line defines the function of the guiding line or informs about the destination of the guiding path. The basic circuit consists of a 3-line, the path to the lift is a 4-line, the path to the stairs is a 5-line, the warning field in front of the stairs at the top is a transversely oriented 7-line, etc.

AISI-LINE 316 L
Apr
02

Train Station Trnava

Drilling installation of the stainless steel guiding system - Trnava railway station Installation at the Trnava railway station was carried out in 2011. The tactile floor guiding system is made of stainless steel 316L. The guiding strips AISI/PD1/35/280/5 and warning buttons AISI/KD/35/5 with so-called diamond surface with anti-slip coefficient R13 were used. Guiding strips and warning studs with pins were used - drilling installation. The arrangement of tactile indicators complies with the regulations of decrees 532/2002 and 9/2009 Coll.

Tactile floor guiding systems in Unicredit Bank Austria branches The installations were carried out in 2011 in Vienna and some other towns nearby. Red polyurethane guiding strips TPU/P1-RE-S/35/500/3, self-adhesive with Gerband 941 tape were used for the installation of the floor guiding system for the blind. The guiding strips are arranged according to the ÖNORM standard.

Installation of warning and signaling polyurethane plates in the village of Budimír The installation was carried out in 2013. The guiding system consisting of warning plates TPUP/K1 and signal plates TPUP/P1 in reflective green was installed using a two-component polyurethane adhesive. TPUP plates are joined together to form a guiding line. They are set up to effectively provide directional and guiding instructions for blind and partially sighted people. The purpose of the warning strip is to warn a visually impaired person before entering a dangerous area, unless the warning is provided otherwise. The signaling strip indicates that an important place is nearby and leads the visually impaired to this place.

Installation of polyurethane guiding plates at the Schwechat railway station The installation of a floor guiding system for the blind at the railway station in Schwechat was carried out in 2018. Polyurethane guiding plates TPUP/P1/150/450 were sticked onto the pavement using liquid glue.

Tactile floor guiding system in the Austrian Standards Meeting Center, Vienna The installation of the floor guiding system for the blind was carried out in 2011. In the photos you can see the AISI/PD1 guiding strips made of stainless steel 316L. Guiding lines in vertical direction, i.e. parallel to the stairs according to the ÖNORM standard. The guiding strips have a diamond/pyramidal surface with an anti-slip coefficient of R13. Drilling installation, guiding strips with pins.

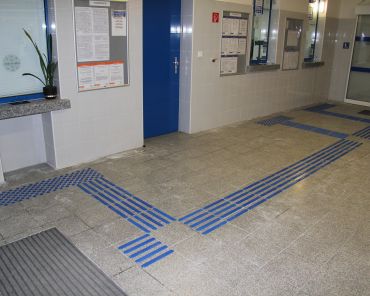

Drilling installation of tactile indicators in Trenčianská Teplá Installation at the Trenčianska Teplá railway station took place in 2014. Polyurethane guiding strips TPU/P2/35/295/5 and warning studs TPU/K2/35/5 were used for the guiding system for the blind. Guiding strips and warning studs with pins were used - drilling installation.

Installation of warning and signaling polyurethane plates in Kasárne Kulturpark The installation was carried out in 2013. The guiding system consisting of warning plates TPUP/K1 and signal plates TPUP/P1 in reflective green was installed using a two-component polyurethane adhesive. TPUP plates are joined together to form a guiding line. They are set up to effectively provide directional and guiding instructions for blind and partially sighted people. The purpose of the warning strip is to warn a visually impaired person before entering a dangerous area, unless the warning is provided otherwise. The signaling strip indicates that an important place is nearby and leads the visually impaired to this place.

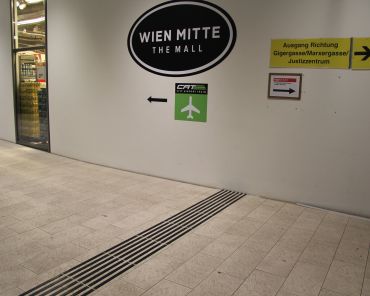

Installation of polyurethane guiding strips in the Wien Mitte shopping center The installation of the floor guiding system for the blind in the shopping center Wien Mitte The Mall was carried out in 2013. Self-adhesive guiding strips made of polyurethane type TPU/P1/35/500/3 were used for the installation. The guiding system is arranged according to ISOTI rules - International System Of Tactile Indicators.

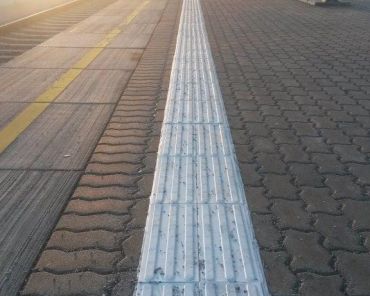

Installation of guiding polyurethane plates in Bratislava The installation was carried out in 2015 in Devínska Nová Ves, a suburb of Bratislava. The guiding system consisting of warning plates TPUP/K1 and signal plates TPUP/P1 in white was installed using a two-component polyurethane adhesive. TPUP plates are joined together to form a guiding line. They are set up to effectively provide directional and guiding instructions for blind and partially sighted people. The purpose of the warning strip is to warn a visually impaired person before entering a dangerous area, unless the warning is provided otherwise. The signaling strip indicates that an important place is nearby and leads the visually impaired to this place.
