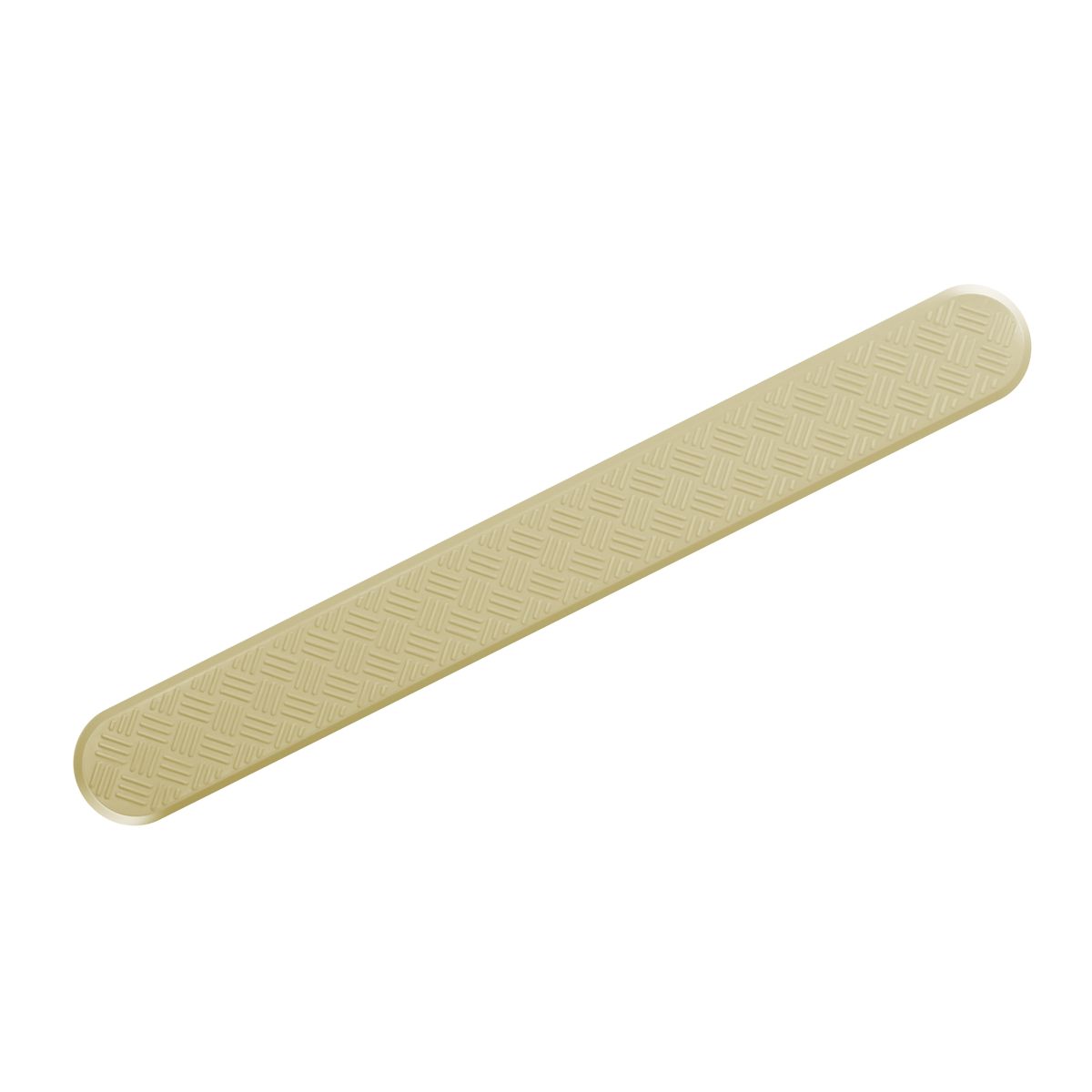

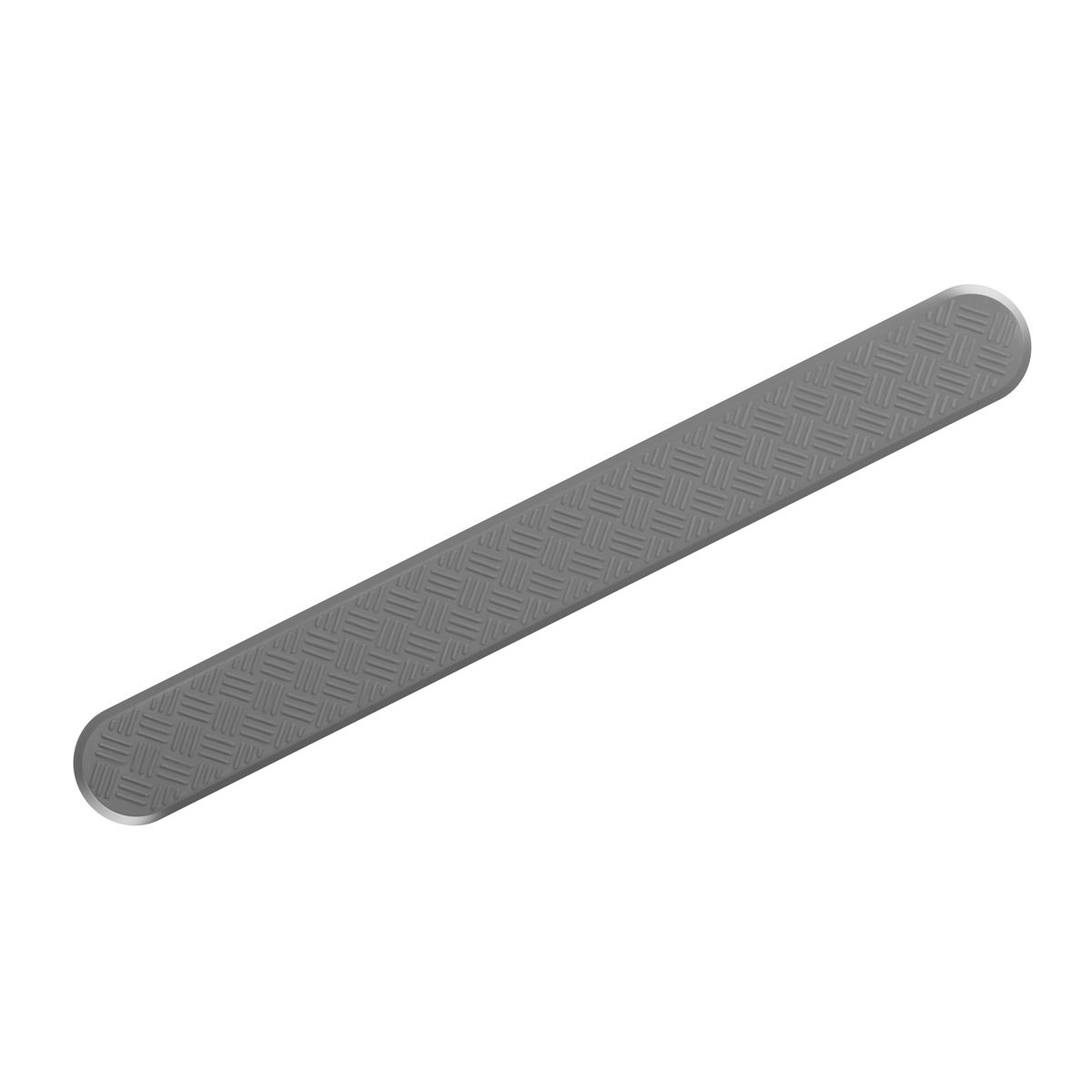

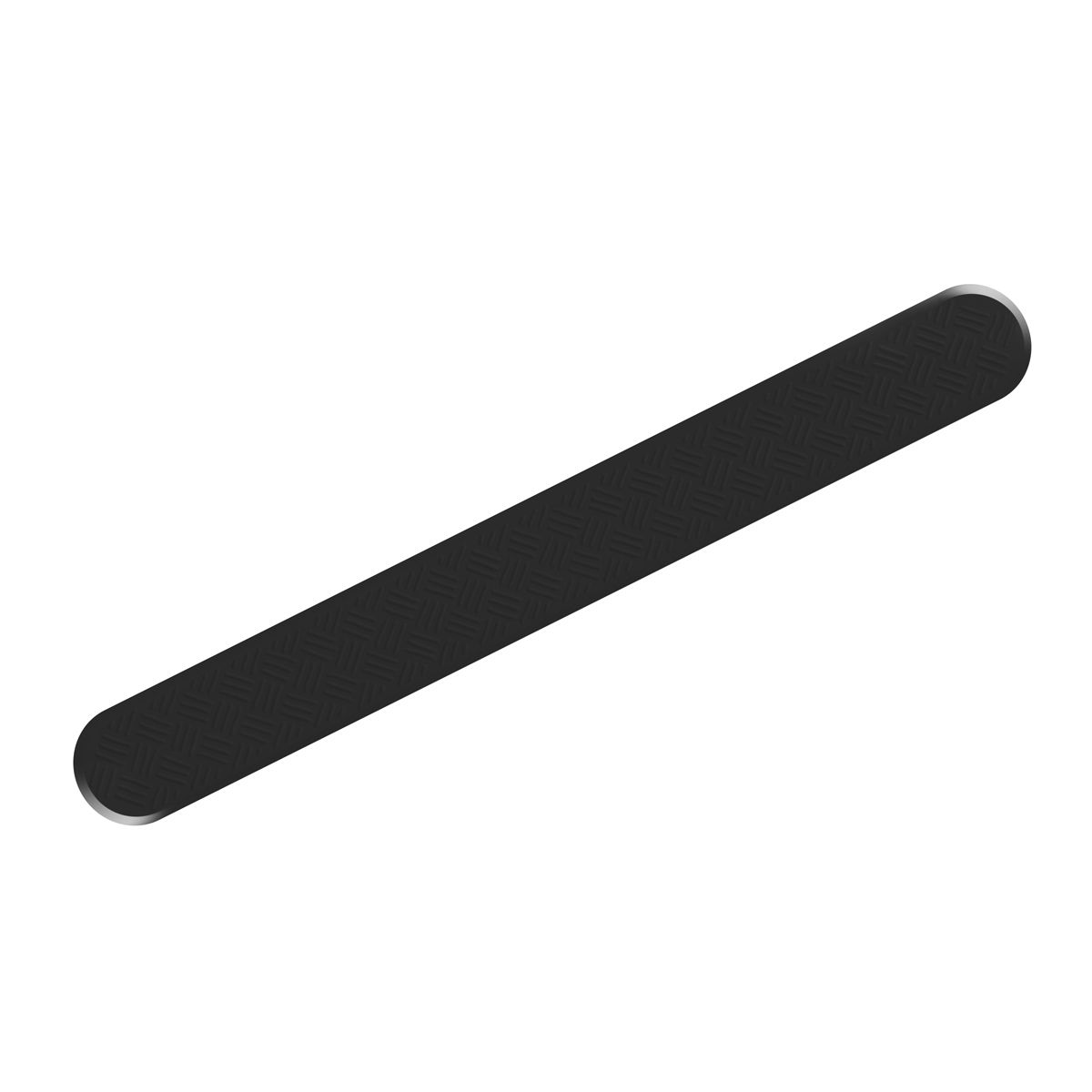

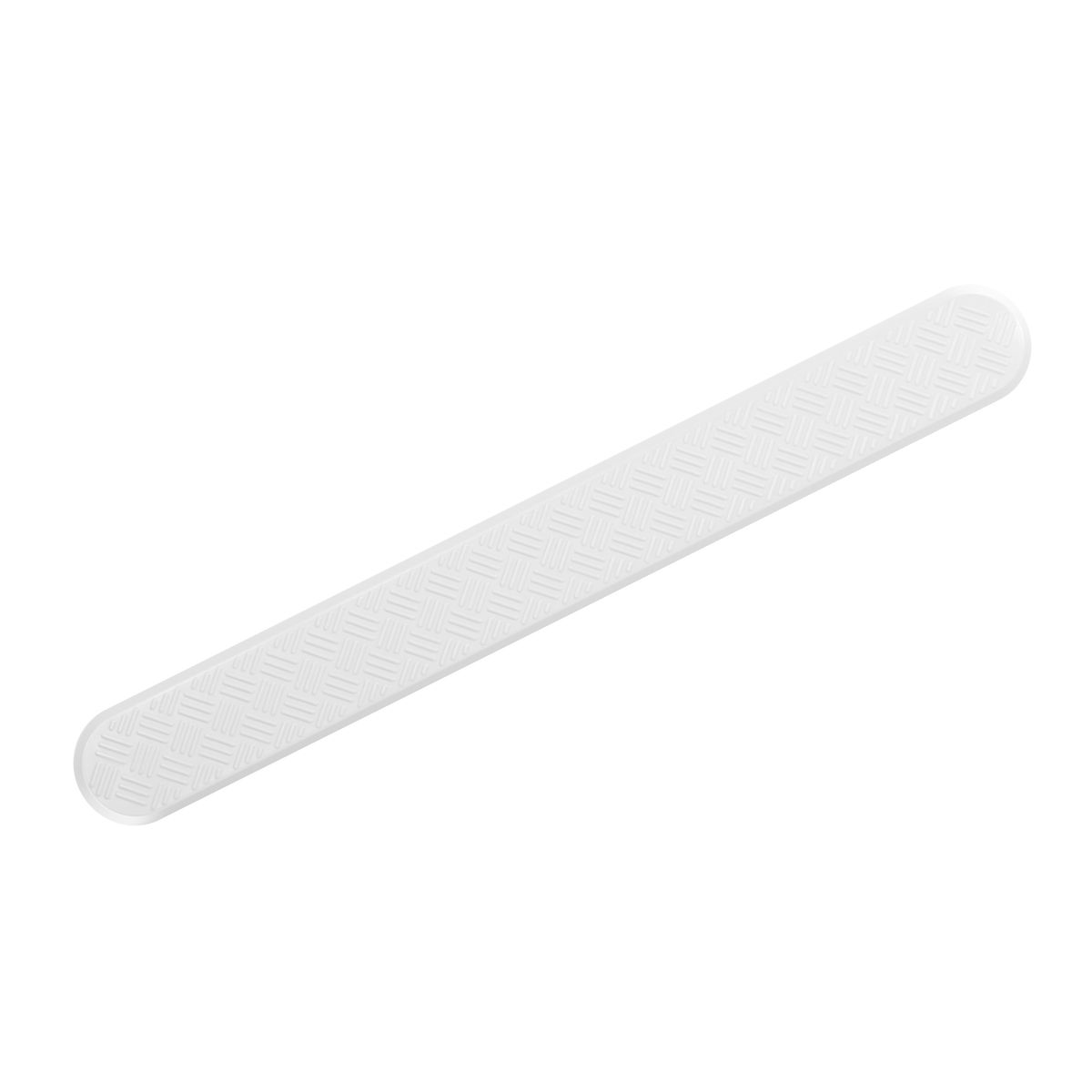

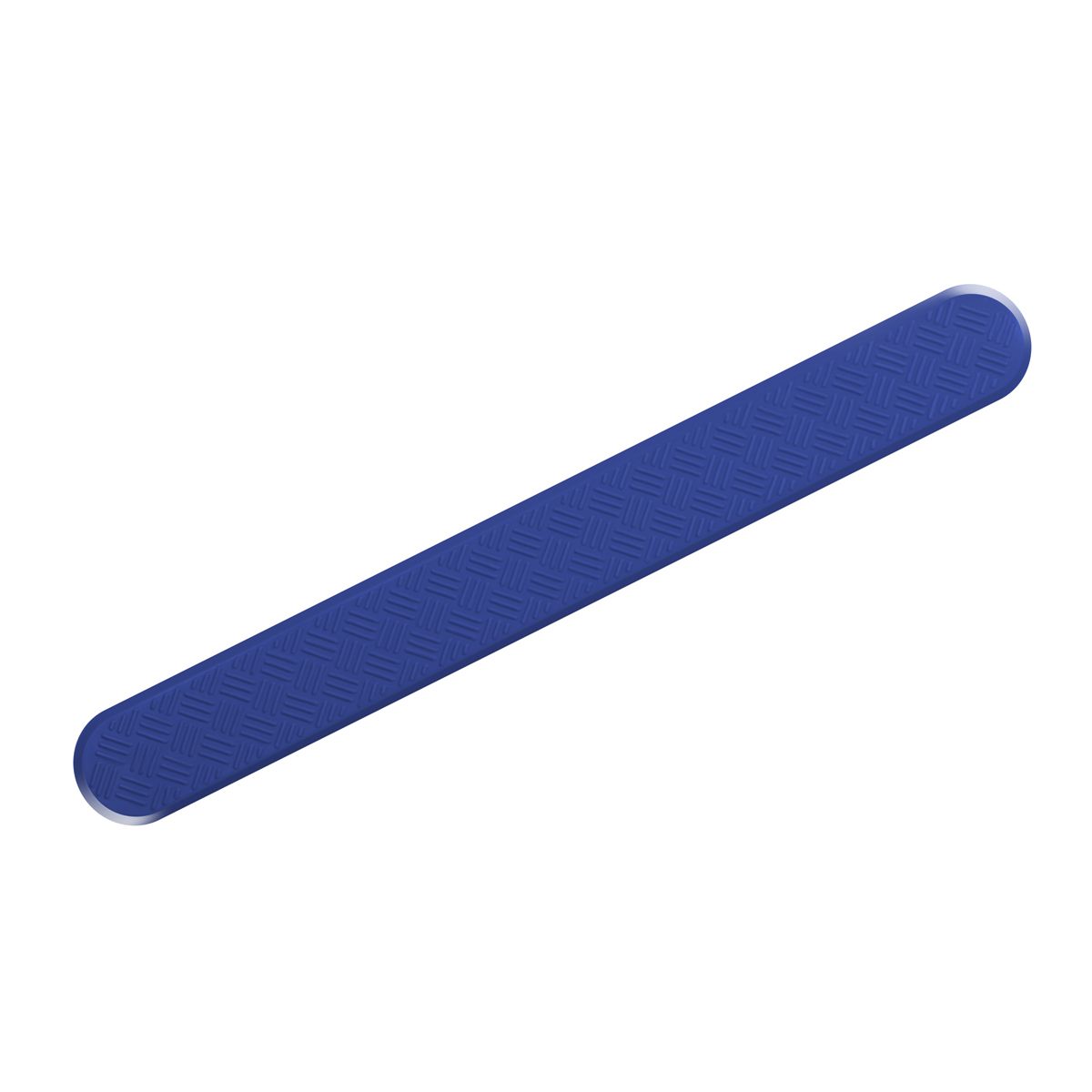

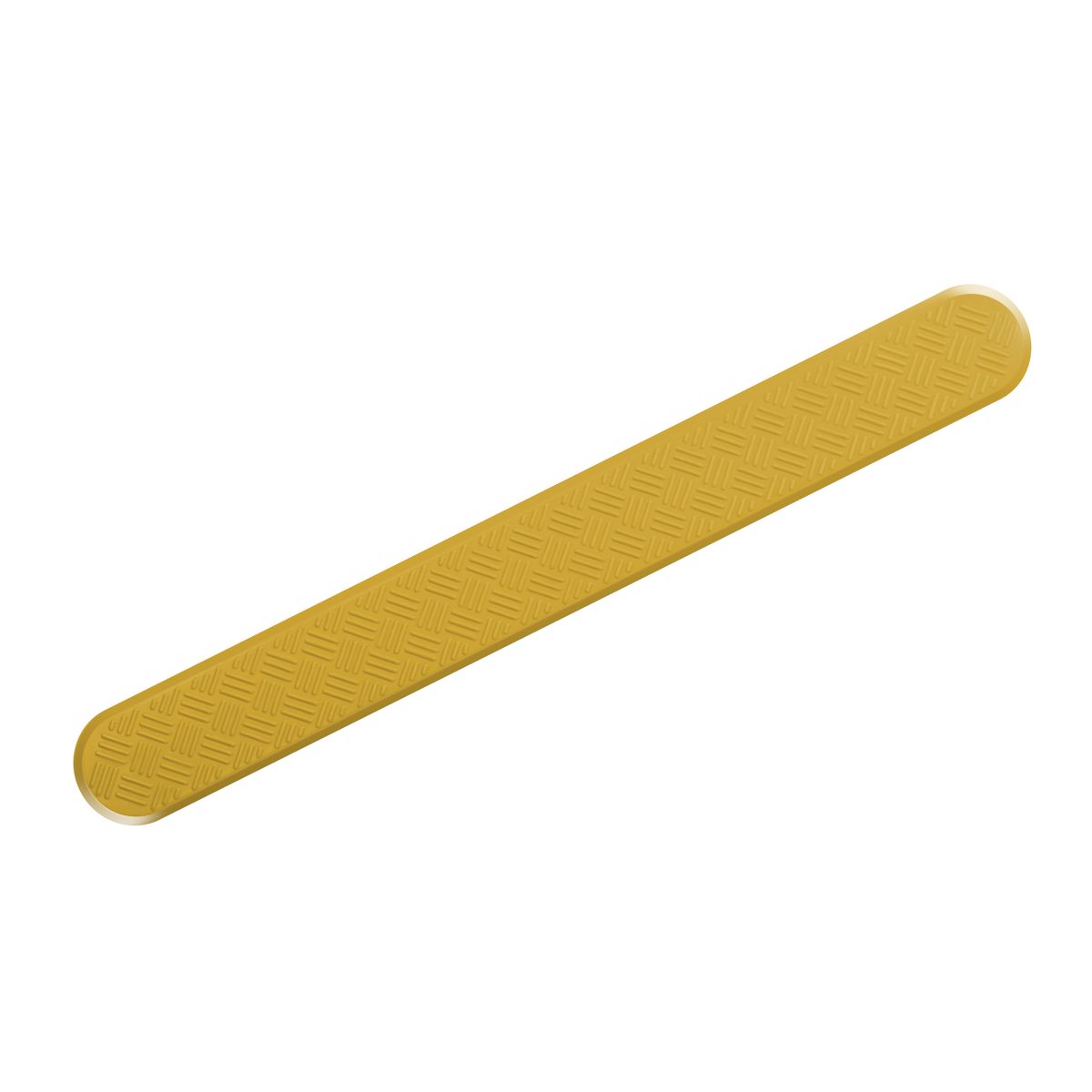

TPU P2 guiding strips
Tactile floor guiding strips in the shape of a longitudinal rib made of polyurethane, opposite protrusions.
and get discount
Individual tactile surface guidelines /tactile guide strips/ in shape of longitudinal ribs are made of stainless steel and ensure long lasting stable performance. They are also characterized by: good resistance to corrosion, abrasion, excellent resistance to weathering, ozone, sunlight and oxidation.
Tactile surface guidelines /tactile guide strips/ are made with pins and without pins in a variety of designs with a possible plastic insert inserted into the product.
The system has already proved good in train stations, banks, universities, entrance areas, etc
- Minimal impact on staff/pedestrians during installation
- Quick and easy installation using a template on all surfaces, including concrete, ceramic tiles, asphalt, wood floors and
most other surfaces
- Embossed anti-slip surface, safe and non-slip
- Long-lasting product performance, impact resistant
- Low maintenance demands
- Walking possible immediately after installation, by full load after 24 hours
- They are modular and their universality allows endless configurations to adapt to new or existing surfaces and styles
- AISI-LINE has a height of 3.5 and 5 mm, which ensures that there will be never any danger on the road
- Stainless steel ensures stability and durability of the product indoors and outdoors
- AISI-LINE offers the specifiers the possibility to maintain the aesthetics of the substrate without limitation of tactile
ARRANGEMENT OF THE GUIDING STRIPS
The tactile guiding strip must be arranged parallel to the longitudinal guideing strips with a flat top.
Recommended distances between tactile guiding strips:
|Upper level width of guiding strips (mm)||Axial distance between guiding strips (mm)|
|17||57 to 78|
|20||60 to 80|
|25||65 to 83|
|30||70 to 85|
The layout and number of strips shown are illustrative, your layout may vary depending on the size of the guiding strips and the overall width of the guiding line according to the country standards.
Systematic research carried out on tactile warning studs with different dimensions has indicated that the upper diameter of 12 mm is the optimal dimension for blind and visually impaired people to detect and recognize the soles of their shoes. Experience shows that the optimal upper average for other groups within the community could be higher.
We can write a lot of lines, slogans and phrases, but what says the most about us is our work. In the references you can see our past projects carried out according to the requirements and needs of customers.
Installation of polyurethane guiding strips at the Faculty of Economics, University of Vienna The installation of the floor guiding system for the blind at the Faculty of Economics, University of Vienna was carried out in 2013. Self-adhesive guiding strips made of polyurethane TPU/P1 were used, the tape was Gerband 941, ideal in interiors. The guiding system is arranged according to ISOTI rules - International System Of Tactile Indicators. The varying number and arrangement of the strips in the guiding line defines the function of the guiding line or informs about the destination of the guiding path. The basic circuit consists of a 3-line, the path to the lift is a 4-line, the path to the stairs is a 5-line, the warning field in front of the stairs at the top is a transversely oriented 7-line, etc.
Self-adhesive installation at the Canadian Museum of Human Rights, Winnipeg The installation at the Canadian Museum of Human Rights in Winnipeg took place in 2017. White polyurethane self-adhesive guiding strips TPU/P1/35/500/3 and warning studs TPU/KH/25/3.3 were used to install the tactile floor guiding system for the blind. The elements were sticked with 3M VHB 5925 tape.
Unicredit Bank Austria
Tactile floor guiding systems in Unicredit Bank Austria branches The installations were carried out in 2011 in Vienna and some other towns nearby. Red polyurethane guiding strips TPU/P1-RE-S/35/500/3, self-adhesive with Gerband 941 tape were used for the installation of the floor guiding system for the blind. The guiding strips are arranged according to the ÖNORM standard.
