AISI 316L H PD3 guiding strips

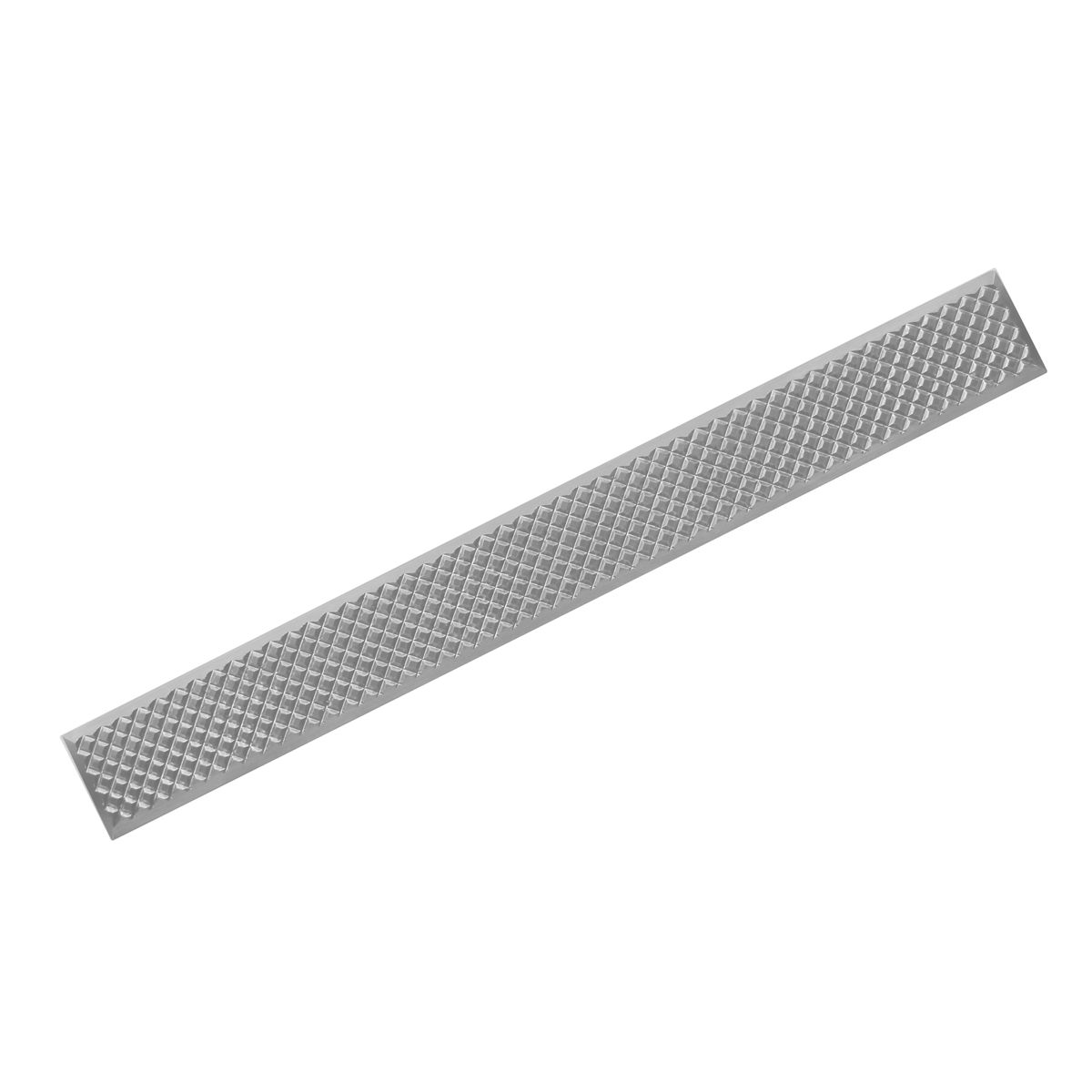

Tactile floor guiding strips in the shape of an angular longitudinal rib, made of stainless steel 316 L, angular surface.

Sign up
and get discount

Description

Individual tactile surface guidelines /tactile guide strips/ in shape of longitudinal ribs are made of stainless steel and ensure long lasting stable performance. They are also characterized by: good resistance to corrosion, abrasion, excellent resistance to weathering, ozone, sunlight and oxidation.
Tactile surface guidelines /tactile guide strips/ are made with pins and without pins in a variety of designs with a possible plastic insert inserted into the product.
The system has already proved good in train stations, banks, universities, entrance areas, etc


PRODUCT FEATURES


  • Minimal impact on staff/pedestrians during installation
  • Quick and easy installation using a template on all surfaces, including concrete, ceramic tiles, asphalt, wood floors and
    most other surfaces
  • Embossed anti-slip surface, safe and non-slip
  • Long-lasting product performance, impact resistant
  • Low maintenance demands
  • Walking possible immediately after installation, by full load after 24 hours
  • They are modular and their universality allows endless configurations to adapt to new or existing surfaces and styles
    of design
  • AISI-LINE has a height of 3.5 and 5 mm, which ensures that there will be never any danger on the road
  • Stainless steel ensures stability and durability of the product indoors and outdoors
  • AISI-LINE offers the specifiers the possibility to maintain the aesthetics of the substrate without limitation of tactile
    performance
Layout

ARRANGEMENT OF THE GUIDING STRIPS

The tactile guiding strip must be arranged parallel to the longitudinal guideing strips with a flat top.

Recommended distances between tactile guiding strips:

Upper level width of guiding strips (mm) Axial distance between guiding strips (mm)
17 57 to 78
20 60 to 80
25 65 to 83
30 70 to 85

The layout and number of strips shown are illustrative, your layout may vary depending on the size of the guiding strips and the overall width of the guiding line according to the country standards.

Systematic research carried out on tactile warning studs with different dimensions has indicated that the upper diameter of 12 mm is the optimal dimension for blind and visually impaired people to detect and recognize the soles of their shoes. Experience shows that the optimal upper average for other groups within the community could be higher.

References

We can write a lot of lines, slogans and phrases, but what says the most about us is our work. In the references you can see our past projects carried out according to the requirements and needs of customers.

Installation of the stainless steel guiding system in the Korneuburg Justice Center, Austria The installation in the Justizzentrum Korneuburg took place in 2011. Tactile indicators made of stainless steel 316L were used in the installation of the tactile floor guiding system. AISI/PD1 stainless steel guiding strips with diamond surface were used. Guiding strip with pins were drilled in the floor. The guiding system is arranged according to ISOTI rules - International System Of Tactile Indicators. A different number and arrangement of the strips in the guiding line defines the function of the guiding line or informs about the destination of the guiding path. The basic circuit consists of a 3-line, the path to the lift is a 4-line, the path to the stairs is a 5-line, the warning field in front of the stairs at the top is a transversely oriented 7-line, etc.

AISI-LINE 316 L
Apr
02

Train Station Senica

Drilling installation of the stainless steel guiding system - Senica railway station Installation at the Senica railway station was carried out in 2011. The tactile floor guiding system is made of stainless steel 316L. The guiding strips AISI/PD1/35/280/5 and warning buttons AISI/KD/35/5 with so-called diamond surface with anti-slip coefficient R13 were used. Guiding strips and warning studs with pins were used - drilling installation. The arrangement of tactile indicators complies with the regulations of decrees 532/2002 and 9/2009 Coll.

AISI-LINE 316 L
Apr
02

Train Station Trnava

Drilling installation of the stainless steel guiding system - Trnava railway station Installation at the Trnava railway station was carried out in 2011. The tactile floor guiding system is made of stainless steel 316L. The guiding strips AISI/PD1/35/280/5 and warning buttons AISI/KD/35/5 with so-called diamond surface with anti-slip coefficient R13 were used. Guiding strips and warning studs with pins were used - drilling installation. The arrangement of tactile indicators complies with the regulations of decrees 532/2002 and 9/2009 Coll.
