AISI 316L K1R warning studs

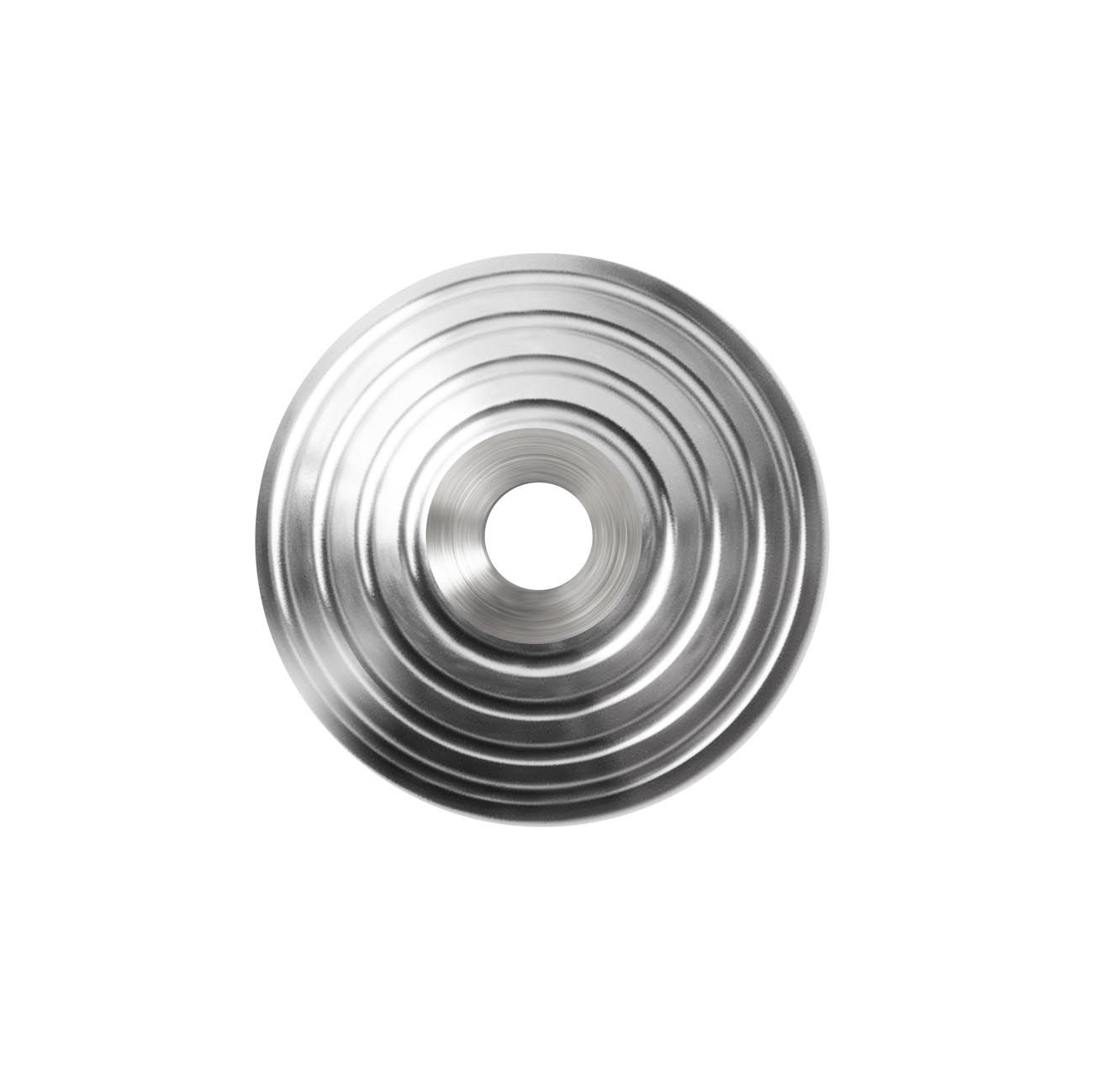

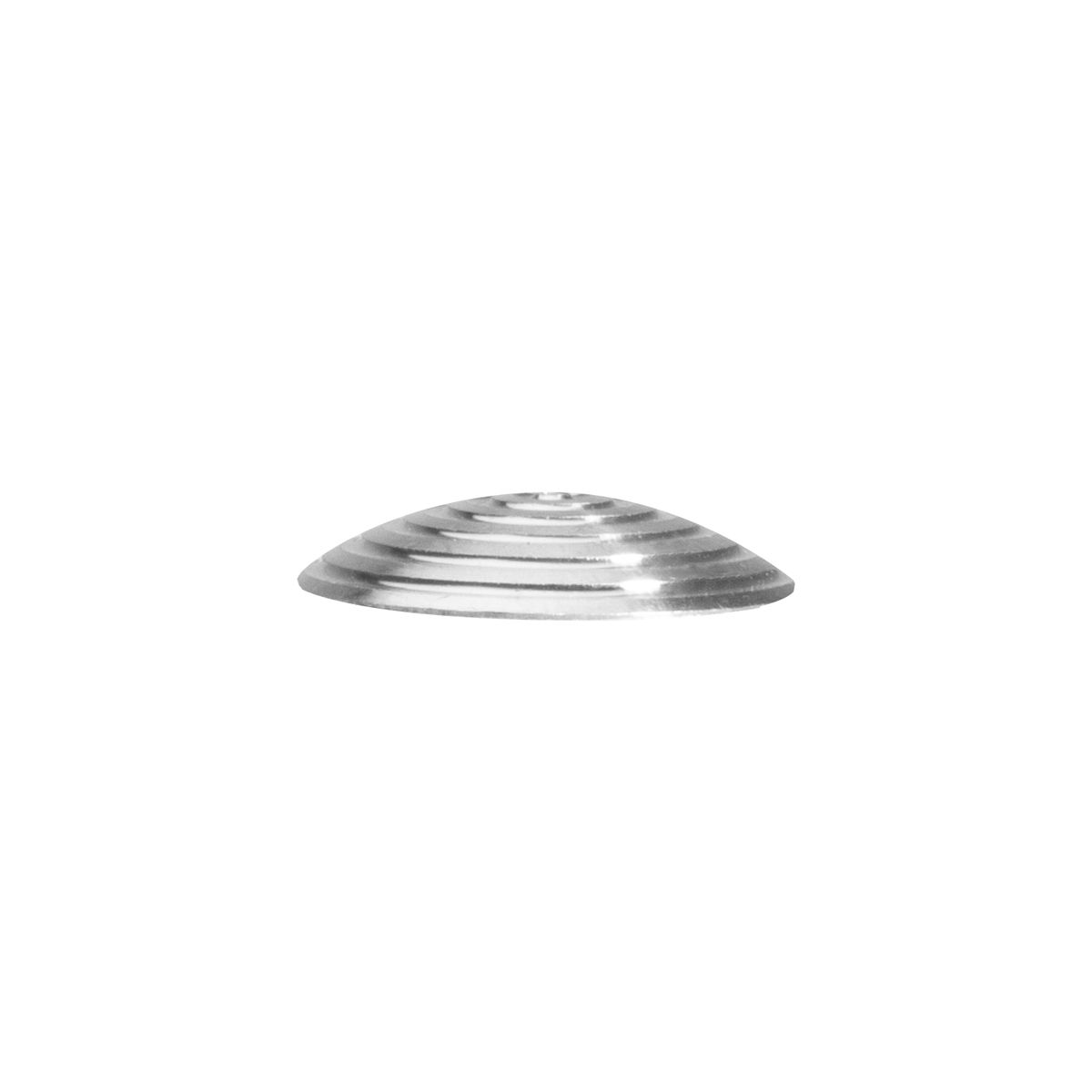

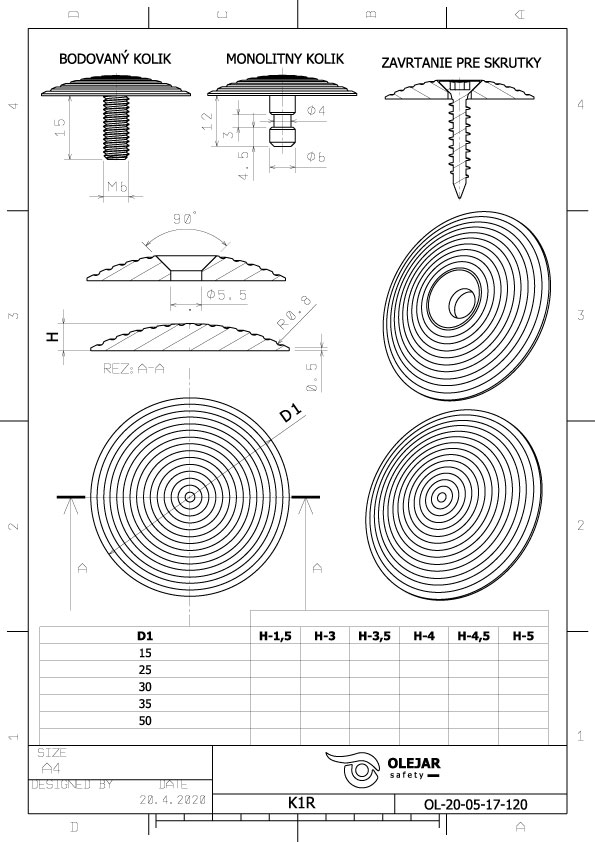

Dome-shaped tactile floor warning studs made of stainless steel 316L, grooved surface.
Sign up
and get discount
PRODUCT DESCRTIPTION
Individual tactile surface warning studs in shape of a truncated cone are made of stainless steel and ensure long lasting stable performance.
They are also characterized by: good resistance to corrosion, abrasion, excellent resistance to weathering, ozone, sunlight and oxidation.
Strips and studs are made with pins and without pins in a variety of designs with a possible plastic insert inserted into the product.
The system has already proved good in train stations, banks, universities, entrance areas, et
PRODUCT FEATURES
- Minimal impact on staff/pedestrians during installation
- Quick and easy installation using a template on all surfaces, including concrete, ceramic tiles, asphalt, wood floors and
most other surfaces - Embossed anti-slip surface, safe and non-slip
- Long-lasting product performance, impact resistant
- Low maintenance demands
- Walking possible immediately after installation, by full load after 24 hours
- They are modular and their universality allows endless configurations to adapt to new or existing surfaces and styles
of design - AISI-lines have a height of 3.5 and 5 mm, which ensures that there will be never any danger on the road
- Stainless steel ensures stability and durability of the product indoors and outdoors
- AISI-LINE offers the specifiers the possibility to maintain the aesthetics of the substrate without limitation of tactile
performance.
Tactile warning studs in the shape of a truncated cone or a dome shape should be arranged in a square grid, parallel or diagonal at 45 ° to the main direction of travel.
The tactile warning strip consists of a relief of warning studs with the possibility of arrangement in a diagonal or parallel layout:
1. Warning strip with warning studs in diagonal layout, vertical and isometric view.
2. Warning strip with warning studs in parallel layout, vertical view.
Recommended distances between tactile warning studs:
The spacing refers to the shortest distance between the centers of two adjacent tactile warning studs, which may be parallel or diagonal at an angle of 45 ° to the direction of travel. The spacing must be within the ranges given in relation to the upper diameter in the table above.
Upper level diameter of warning studs (mm) | Axial distance between warning studs (mm) |
---|---|
12 | 42 to 61 |
15 | 45 to 63 |
18 | 48 to 65 |
20 | 50 to 68 |
25 | 55 to 70 |
References
We can write a lot of lines, slogans and phrases, but what says the most about us is our work. In the references you can see our past projects carried out according to the requirements and needs of customers.
02
JUSTIZZENTRUM KORNEUBURG - AUSTRIA
Installation of the stainless steel guiding system in the Korneuburg Justice Center, Austria The installation in the Justizzentrum Korneuburg took place in 2011. Tactile indicators made of stainless steel 316L were used in the installation of the tactile floor guiding system. AISI/PD1 stainless steel guiding strips with diamond surface were used. Guiding strip with pins were drilled in the floor. The guiding system is arranged according to ISOTI rules - International System Of Tactile Indicators. A different number and arrangement of the strips in the guiding line defines the function of the guiding line or informs about the destination of the guiding path. The basic circuit consists of a 3-line, the path to the lift is a 4-line, the path to the stairs is a 5-line, the warning field in front of the stairs at the top is a transversely oriented 7-line, etc.
02
Train Station Senica
Drilling installation of the stainless steel guiding system - Senica railway station Installation at the Senica railway station was carried out in 2011. The tactile floor guiding system is made of stainless steel 316L. The guiding strips AISI/PD1/35/280/5 and warning buttons AISI/KD/35/5 with so-called diamond surface with anti-slip coefficient R13 were used. Guiding strips and warning studs with pins were used - drilling installation. The arrangement of tactile indicators complies with the regulations of decrees 532/2002 and 9/2009 Coll.
02
Train Station Trnava
Drilling installation of the stainless steel guiding system - Trnava railway station Installation at the Trnava railway station was carried out in 2011. The tactile floor guiding system is made of stainless steel 316L. The guiding strips AISI/PD1/35/280/5 and warning buttons AISI/KD/35/5 with so-called diamond surface with anti-slip coefficient R13 were used. Guiding strips and warning studs with pins were used - drilling installation. The arrangement of tactile indicators complies with the regulations of decrees 532/2002 and 9/2009 Coll.
