MS K1R warning studs

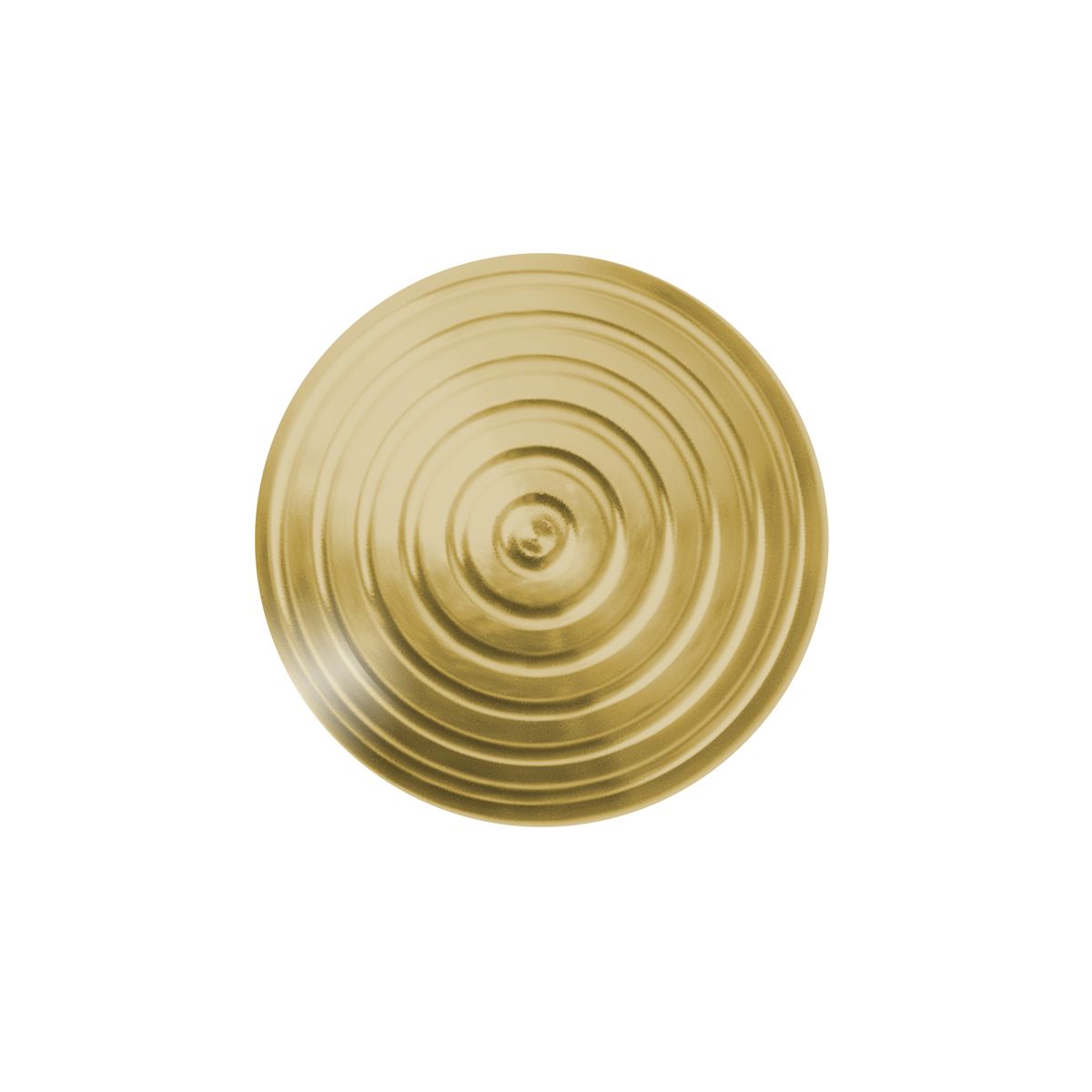

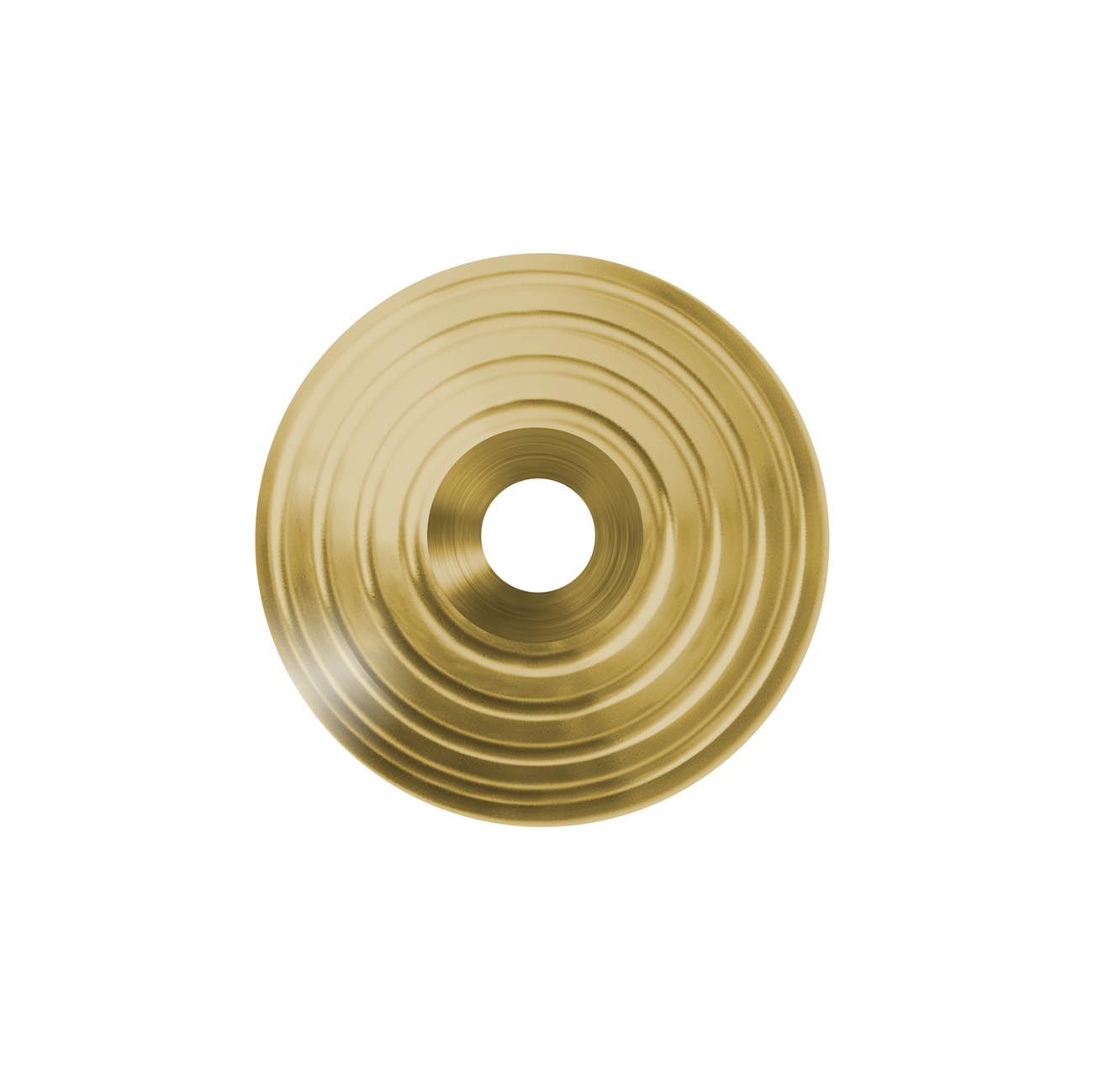

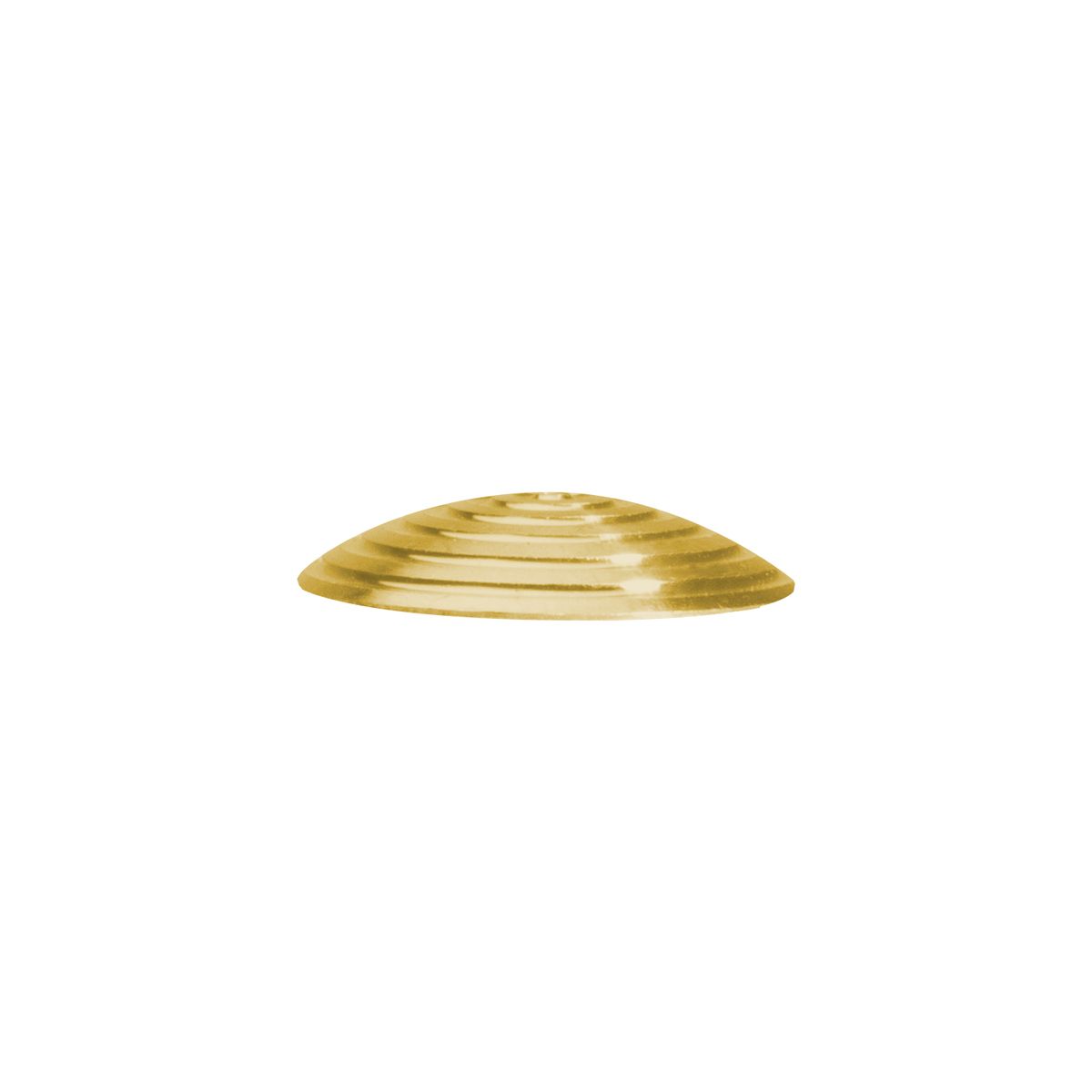

Dome-shaped tactile floor warning studs made of brass, grooved surface.
and get discount
Individual tactile surface warning studs in shape of a truncated cone are made of stainless steel and ensure long lasting stable performance.
They are also characterized by: good resistance to corrosion, abrasion, excellent resistance to weathering, ozone, sunlight and oxidation.
Strips and studs are made with pins and without pins in a variety of designs with a possible plastic insert inserted into the product.
The system has already proved good in train stations, banks, universities, entrance areas, et
- Minimal impact on staff/pedestrians during installation
- Quick and easy installation using a template on all surfaces, including concrete, ceramic tiles, asphalt, wood floors and
most other surfaces
- Embossed anti-slip surface, safe and non-slip
- Long-lasting product performance, impact resistant
- Low maintenance demands
- Walking possible immediately after installation, by full load after 24 hours
- They are modular and their universality allows endless configurations to adapt to new or existing surfaces and styles
- AISI-lines have a height of 3.5 and 5 mm, which ensures that there will be never any danger on the road
- Stainless steel ensures stability and durability of the product indoors and outdoors
- AISI-LINE offers the specifiers the possibility to maintain the aesthetics of the substrate without limitation of tactile
Tactile warning studs in the shape of a truncated cone or a dome shape should be arranged in a square grid, parallel or diagonal at 45 ° to the main direction of travel.
The tactile warning strip consists of a relief of warning studs with the possibility of arrangement in a diagonal or parallel layout:
1. Warning strip with warning studs in diagonal layout, vertical and isometric view.
2. Warning strip with warning studs in parallel layout, vertical view.
Recommended distances between tactile warning studs:
The spacing refers to the shortest distance between the centers of two adjacent tactile warning studs, which may be parallel or diagonal at an angle of 45 ° to the direction of travel. The spacing must be within the ranges given in relation to the upper diameter in the table above.
|Upper level diameter of warning studs (mm)||Axial distance between warning studs (mm)|
|12||42 to 61|
|15||45 to 63|
|18||48 to 65|
|20||50 to 68|
|25||55 to 70|
We can write a lot of lines, slogans and phrases, but what says the most about us is our work. In the references you can see our past projects carried out according to the requirements and needs of customers.
Drilling installation of guiding strips and warning studs made of brass The installation in the Parliament of the Republic of Lower Saxony took place in 2017. Brass guiding strips MS/P2-K/25/140/3.5 and brass warning studs MS/K1-K/25/3,5 were used for the installation of the tactile floor guiding system for the blind. Guiding strips and warning studs with pins were used - drilling installation. The floor indicators are arranged in accordance with the German standard DIN 32984 - Ground surface indicators in public areas.
STATE THEATER DARMSTADT, GERMANY
Drilling installation of brass elements in the State Theater Darmstadt This installation took place in 2017. Brass guiding strips MS/P2-K/25/140/3.5 and brass warning studs MS/K1-K/25/3,5 were used for the installation of the tactile floor guiding system for the blind. Guiding strips and warning studs with pins were used - drilling installation. The floor indicators are arranged in accordance with the German standard DIN 32984 - Ground surface indicators in public areas. The edges of stairs were marked with MS/K1-K/25/1.5 warning studs. The tactile guiding system won the Federal Republic of Hesse Award for universal design.
Installation of brass elements in the center of the Union of the Blind of Slovakia in Trenčín The assembly was carried out in the center of the Union of the Blind of Slovakia in Trenčín in 2010. Brass guiding strips type MS / P2 / 25/140 / 3,5 and warning studs made of brass MS / K1 / 25 / 3,5 were used for the assembly of the tactile floor guiding system for the blind. The warning studs are arranged in parallel.
